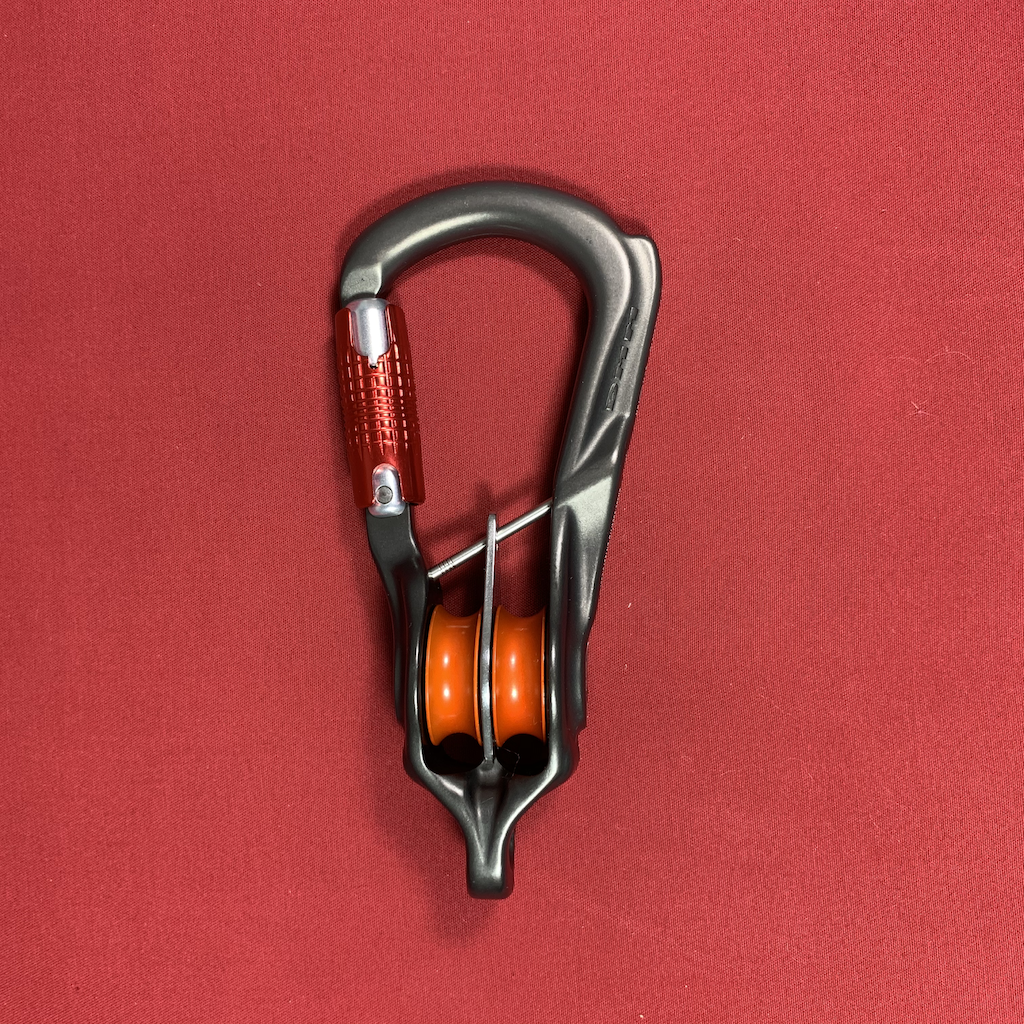

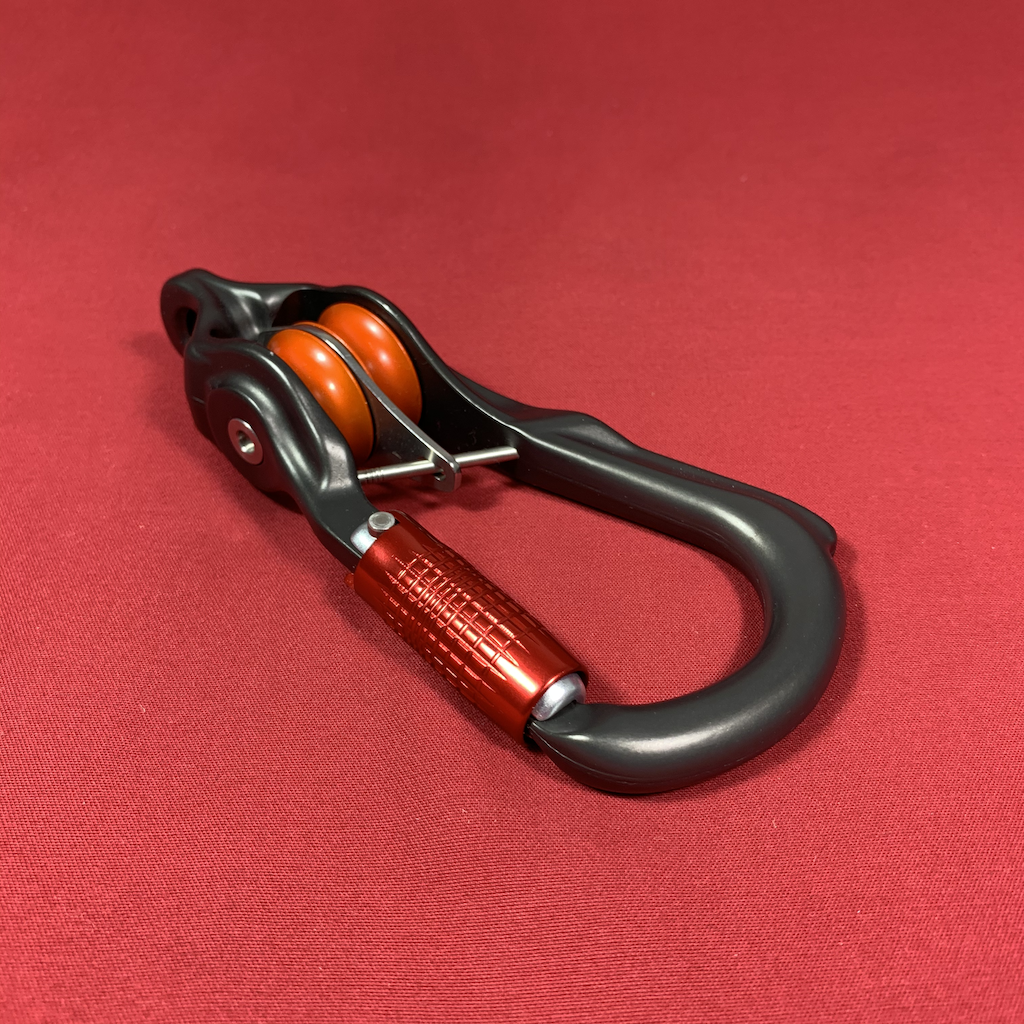

Revolver Rig Twin

USD $ 117.44

In stock (can be backordered)

The Revolver Rig Twin is an auto-locking rated connector with a built-in high-efficiency roller bearing double pulley making for a lightweight, efficient and useful rigging pulley.   The unique profiled spine and threaded captive bar ensure the correct orientation and maximum strength.   The becket located between the pulleys allows for attachment of other components and is very useful in many rigging tasks.   An excellent all in one connecter and pulley.

In stock (can be backordered)

SKU: DMM-REVOLVER-TWIN Categories: , , , , ,

Description

The Revolver Rig Twin is an auto-locking rated connector with a built-in high-efficiency roller bearing double pulley making for a lightweight, efficient and useful rigging pulley. The unique profiled spine and threaded captive bar ensure the correct orientation and maximum strength. The becket located between the pulleys allows for attachment of other components and is very useful in many rigging tasks. An excellent all in one connecter and pulley.

  • High-efficiency roller bearing double pulleys roll smooth even at high loads
  • Built-in auto-locking carabiner for easy and safe connection
  • Threaded capture rod keeps the pulley orientation correct loading the strongest part of the carabiner
  • Full strength central becket allows for easy addition of other components and is extremely handing in many rigging tasks
  • Keylock nose prevents snags and makes it easy to clip and unclip from connection points
  • MBS Major Axis: 25kN
  • MBS Minor Axis: 7kN
  • MBS Gate Open: 7kN
  • WLL: 5kN
  • Dimensions: 76 x 161mm
  • Weight: 219g
  • Max. Rope Diameter: 10mm
  • Certification: EN12278:2007, EN362:2004 T
  • Manufacturer: DMM
  • Country of origin: UK

Looking for bigger pulleys?

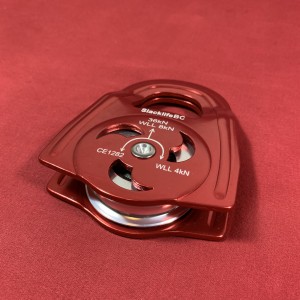

2″ Single Pulley

USD $ 35.23Add to cart

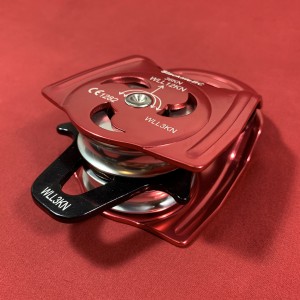

2″ Double Pulley

USD $ 58.72Add to cart

Looking for a pulley kit?

Save 5% on the pulley kit components when buying a kit!

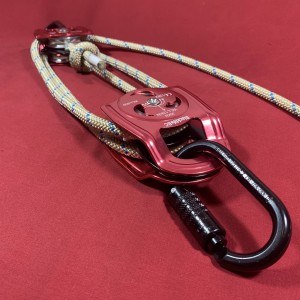

Boss Pulley Kit

5:1 Pulley Kit

From: USD $ 197.31Add to cart

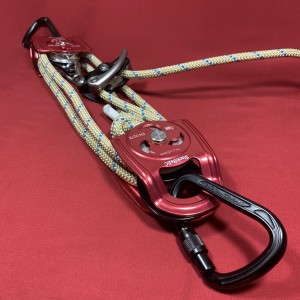

Boss Release Kit

Progress Capture Pulley Kit

USD $ 290.83Add to cart

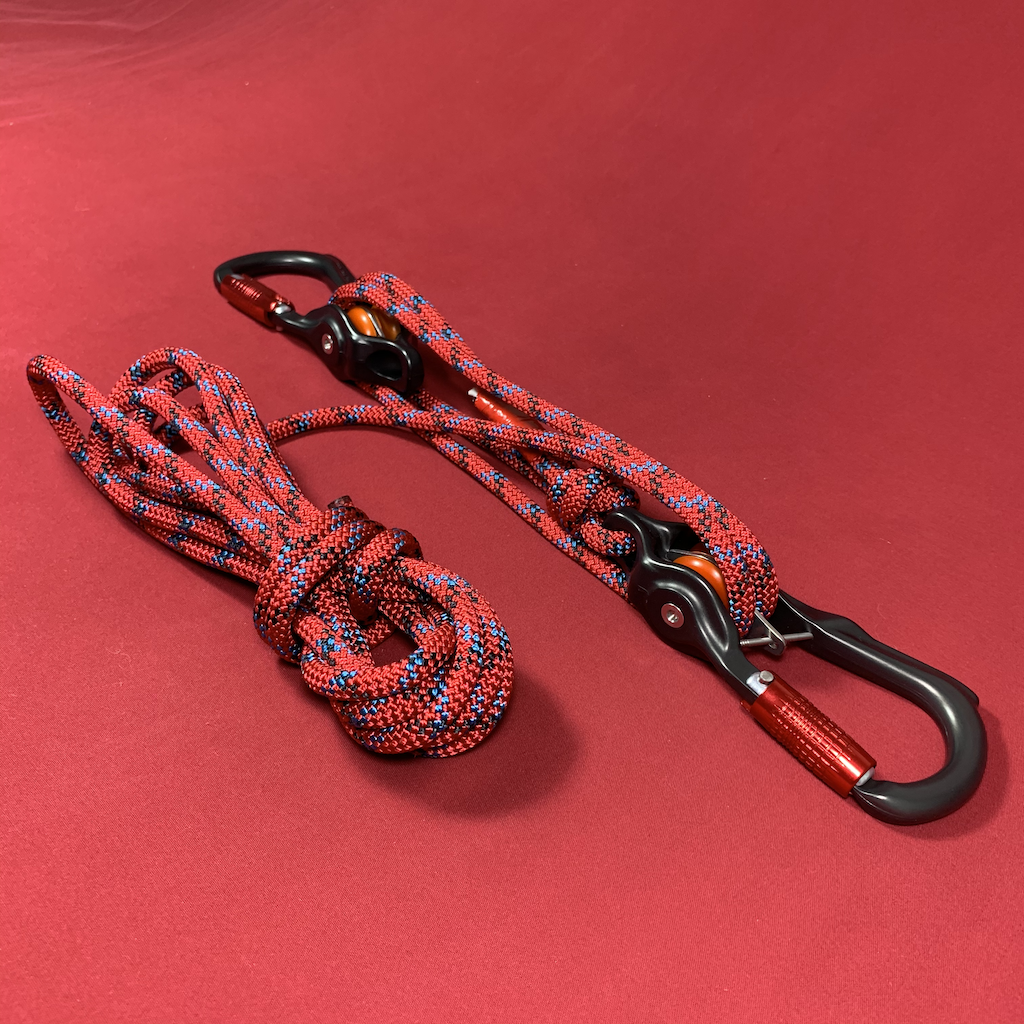

Revolver Kit
