Whoopie Sling Break Test

Summary:

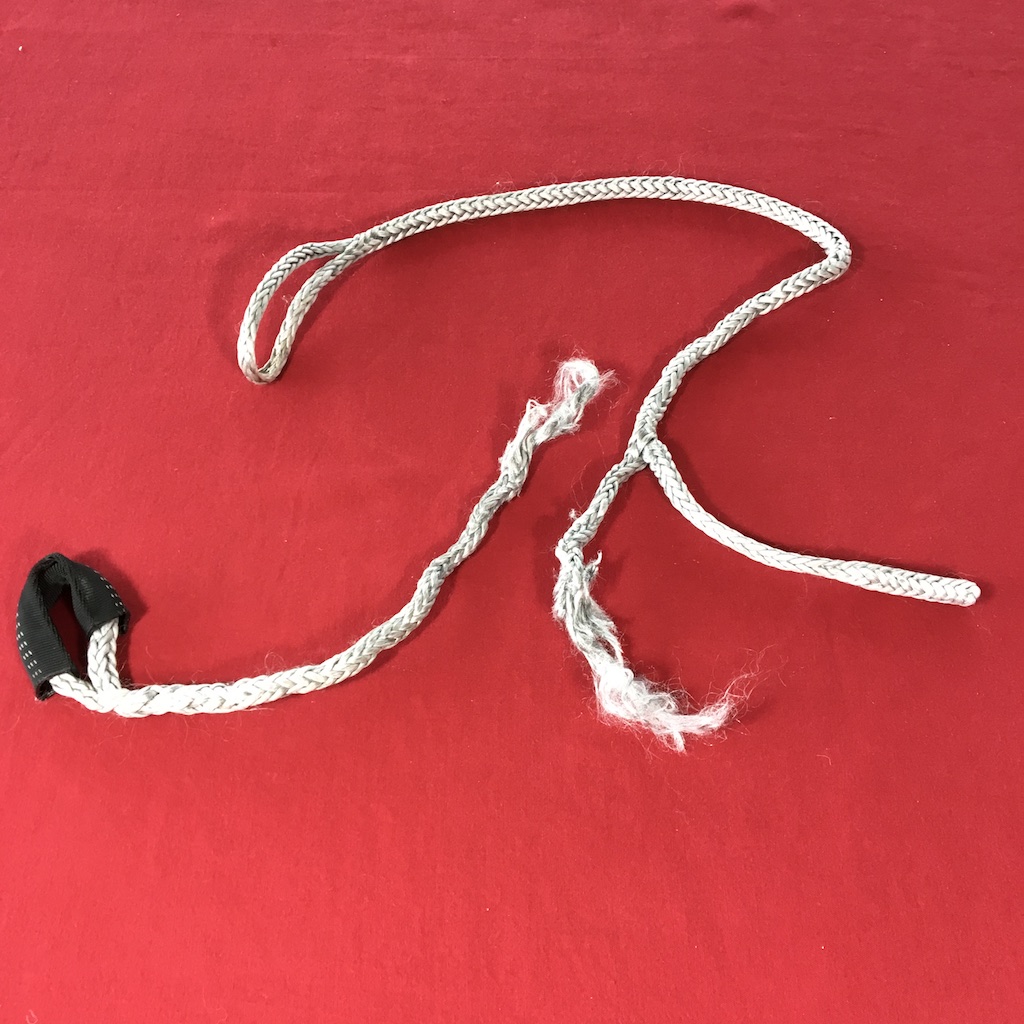

In this test, a whoopie sling was loaded gradually until the point of failure.   The sling broke somewhere between the fixed loop and the adjustable loop bury exit.

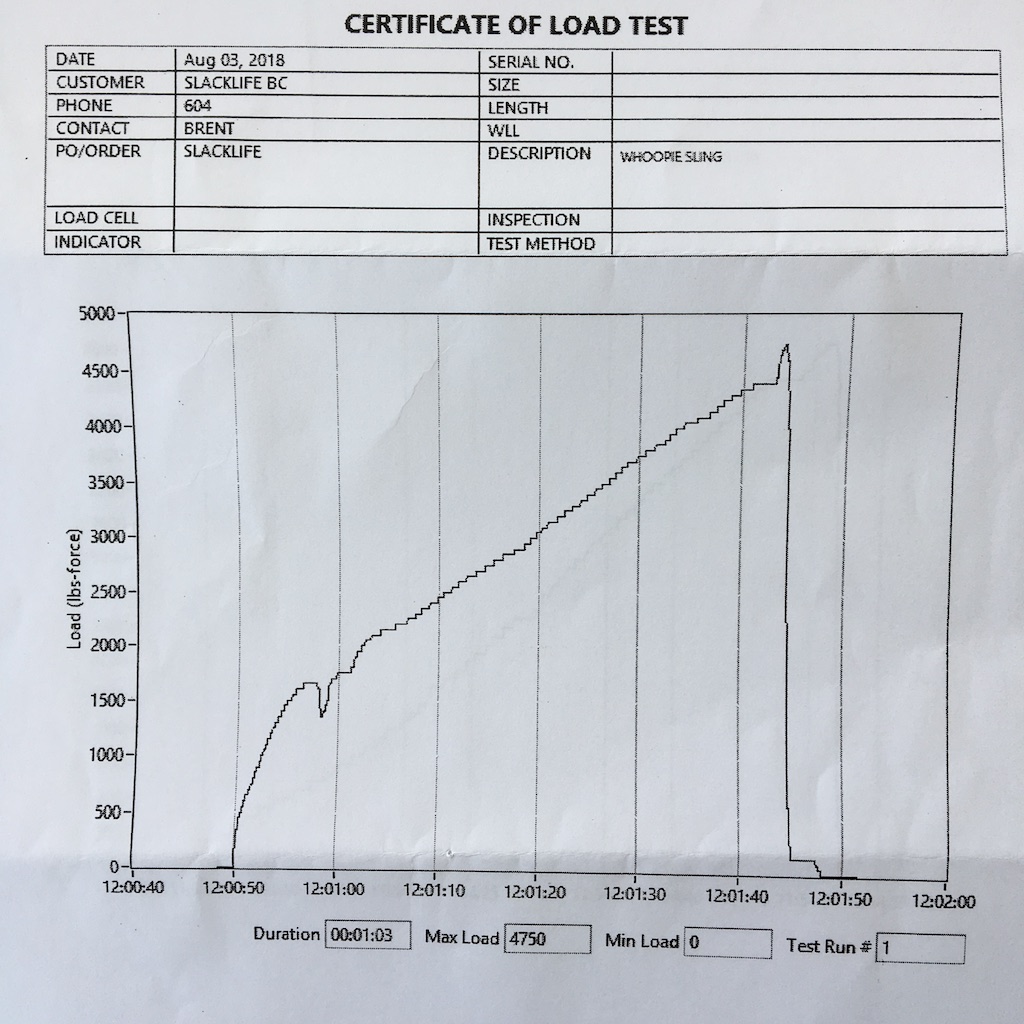

Aug 3, 2018 Test Results

  • Breaking Point: 21 kN (4750 lbs)
  • Load Type:  Gradual (~75 lbs/s)
  • Test Duration:  1min 3sec

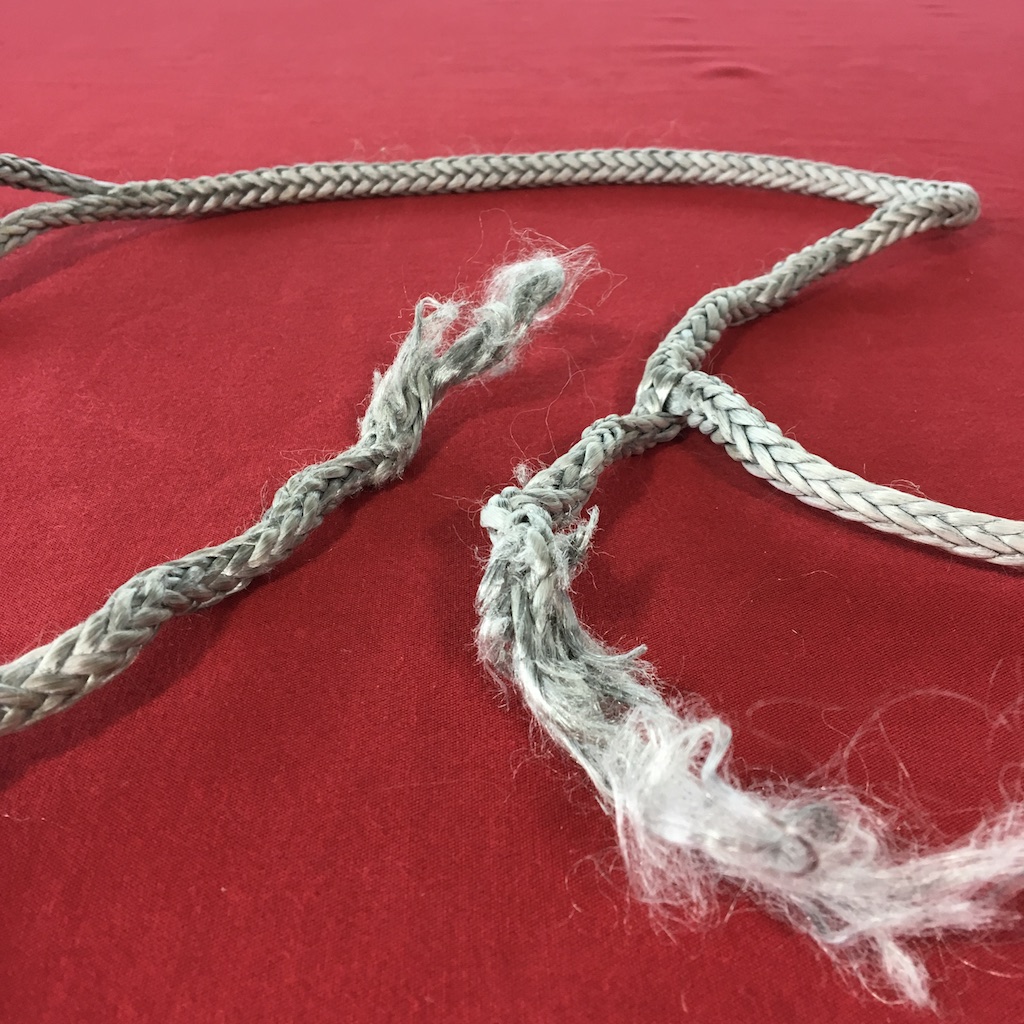

  • Failure Point:  Between fixed loop and adjustable loop bury exit
